Warm White Led Pl-cn50-ac-cob-g3-900-930-24d-pc Prevaled Coin Cob 50 240V 6977770431263

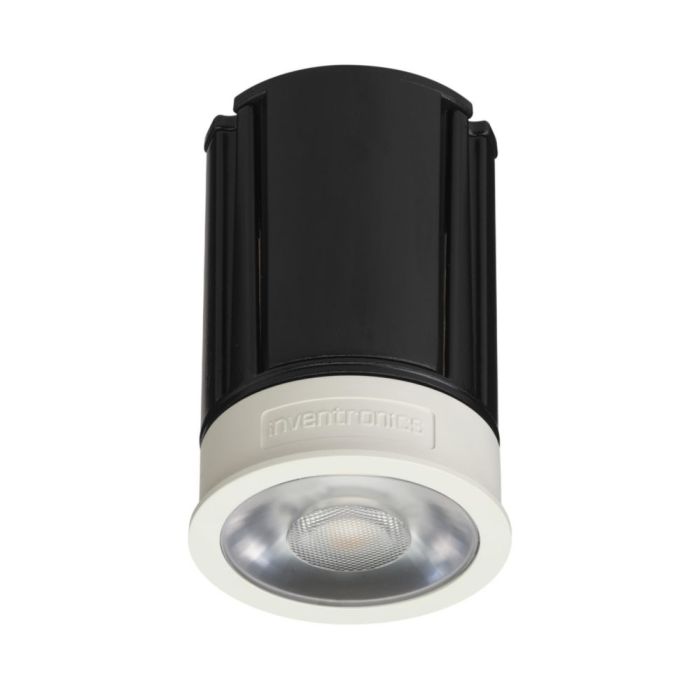

PrevaLED COIN 50 AC G3 | Spot-, Down- and Wallmount Light Engines and Modules
PL-CN50-AC-COB-G3 -900-930-24D-PC

230-240V connection, no external LED driver required. Dimmable with most Leading or Trailing Edge Dimmers!

Accessories available (Suitable only for PrevaLED 50mm coins):
LEDCN50RR75CHWH - White Round Ring
LEDCN50SR75CHWH - White Square Ring

Product family features:
Integrated driver, heat sink and lens optics
Fits into most existing traditional MR16 luminaires
Available with 24° or 40° beam angle
Dimmable on the leading edge and trailing edge

Product family benefits:
Easy and quick design-in for luminaire manufacturers
Turn-key solution for projects
5 year guarantee
Compatible with the most common leading-edge and trailing-edge phase dimmers
Flicker-free dimming

Areas of application:
Retail, shop, restaurant, hospitality
High-end residential
Exhibition halls
Museums
Suitable for indoor applications

EAN: 6977770431263

Electrical data:
Nominal voltage: 230V AC V
Nominal current: 0.045 A
Type of current: AC
On-mode power: 9.5 W
Energy consumption in on-mode: 9.5 kWh/1000h
Input voltage AC: 198-264 V
Output PSTLM: ≤1
Output SVM: ≤0.9
Mains frequency: 50/60 Hz
Total harmonic distortion: < 20 %
Power factor λ: 0.9
Inrush current: <2.37 A

Photometrical data:
Correlated color temperature CCT: 3000 K
Colour consistency (McAdam ellipses): 2
Useful luminous flux (Φuse): 790 lm

Light technical data:
Beam angle: 24 °
Starting time: 0.5 s
Warm-up time (60 %): 1 s

LED module information:
Number of LEDs per module: 1

Dimensions & weight:
Product weight: 185.00 g
Height EPREL: 72 mm
Length EPREL: 50 mm
Width EPREL: 50 mm

Colors & materials:
Heatsink color: Grey

Temperatures & operating conditions:
Performance temp. acc. to IEC 62717: 65 °C
Maximum temperature at tc test point: 90 °C

Lifespan:
Number of switching cycles: 25000
Lumen maintenance factor LMF: 96
L70B50 Lifetime: 50000 h

Additional product data:
Lighting technology used: LED

Capabilities:
Dimmable: Yes
Dimming interface: Phase Cut

Certificates & standards:
Standards: IEC 62471 / IEC 60598-1 / EN 60529 / EN 62031 IEC 605981 / EN 55015 /EN 61547
Type of protection: IP20
Energy efficiency class: F

Environmental information:
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 14-10-2025
Primary Article Identifier: 6977770431263
Candidate List Substance 1: no declarable substance contained
Declaration No. in SCIP database: In work
