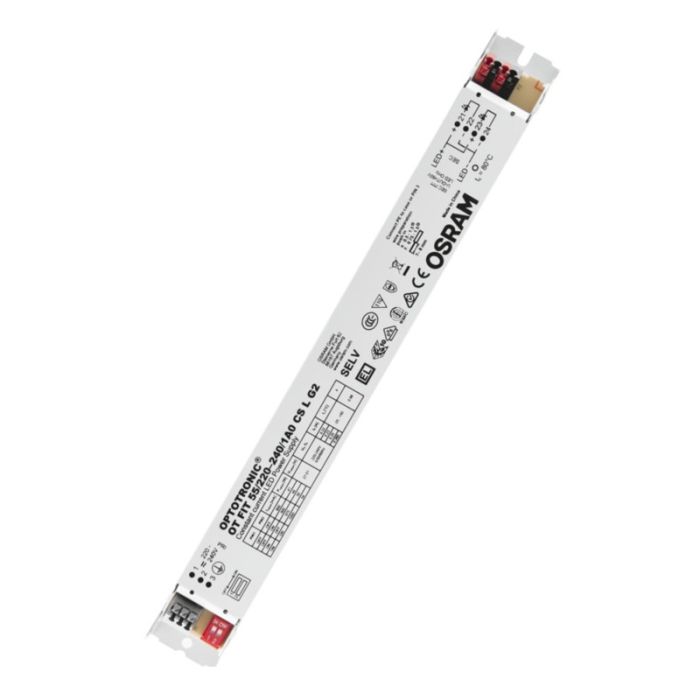

Led Driver OT FIT 55/220-240/1A0 CS L G2 4052899522558

OT FIT 55/220-240/1A0 CS L G2
OPTOTRONIC FIT CS L G2 | Linear / Area Constant Current – Non dimmable

Intended for use with constant current LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Product family features:
Line frequency: 0 Hz | 50 Hz | 60 Hz
Versatile scope of application due to output power range of up to 75 W
Supply voltage: 220…240 V
Available with output current range: up to 1,400 mA
SELV system

Product family benefits:
Flexible current setting (DIPswitch – 4 currents)
Lifetime: up to 100,000 h (temperature at Tc - = 65 °C, max. 10 % failure rate)
High efficiency
High quality of light thanks to low output ripple current
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Areas of application:
Linear lighting for office, education, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for luminaires of protection class I

Electrical data:
Nominal input voltage: 220-240 V
Mains frequency: 0/50/60 Hz
Input voltage AC: 198-264 V
Input voltage DC: 176-276 V
Total harmonic distortion: < 10 %
Power factor λ: 0.87C-0.98
Device power loss: 7.0 W
Networked standby power: not relevant
Inrush current: 20 A
Max. ECG no. on circuit breaker 10 A (B): 16
Max. ECG no. on circuit breaker 16 A (B): 25
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Protective conductor current: 2.0 mA
Nominal output voltage: 27-51 V
U-OUT (working voltage): < 60 V
Nominal output current: 800 mA / 900 mA / 975 mA / 1050 mA
Default output current: 1000 mA
Output current tolerance: ±7.5 %
Output ripple current (100 Hz): < 5 %
Output PSTLM: ≤1
Output SVM: ≤0.4
Nominal output power: 14.0-53.6 W

Dimensions & weight:
Product weight: 217.00 g
Length: 280.0 mm
Width: 30.0 mm
Height: 21.0 mm
Mounting hole spacing, length: 270.0 mm
Mounting hole spacing, width: not relevant mm
Cable cross-section, input side: 0.5-1.5 mm²
Cable cross-section, output side: 0.5-1.5 mm²
Wire preparation length, input side: 8.5-9.5 mm
Wire preparation length, output side: 8.5-9.5 mm

Colors & materials:
Casing material: Metal

Temperatures & operating conditions:
Ambient temperature range: -25 +50 °C
Maximum temperature at tc test point: 80 °C
Max.housing temperature in case of fault: 110 °C
Temperature range at storage: -25 +85 °C
Permitted rel. humidity during operation: 5-85 %

Lifespan:
ECG lifetime: 50000 / 100000 h
At maximum Tc = 75°C / 10% failure rate / At Tc = 65°C / 10% failure rate

Capabilities:
Programming interface: Dipswitch
Control interface: No
Constant lumen function: No
Max. cable length to lamp/LED module: 2.0 m
Suitable for fixtures with prot.: class I
Suitable for emergency lighting: Yes
Type of connection, input side: Push terminal
Type of connection, output side: Push terminal
Number of channels: 1
Overheating protection: Automatic reversible
Overload protection: Non-reversible
Short-circuit protection: Automatic reversible
Intended for no-load operation: No
No-load proof: Yes

Programming:
Programming device: DIPswitch

Certificates & standards:
Approval marks – approval: CE / EL / ENEC 05 / EAC / CCC / RCM / BIS
Standards: EN 61347-1 / EN 61347-2-13 / EN 62384 / EN 61000-3-2 / EN 61000-3-3 / EN 61547
Type of protection: IP20

Logistical data:
Commodity code: 85044083900

Environmental information:
Date of Declaration: 13-02-2025
Primary Article Identifier: 4052899522558
Declaration No. in SCIP database: In work
SCIP_STATUS: In work
