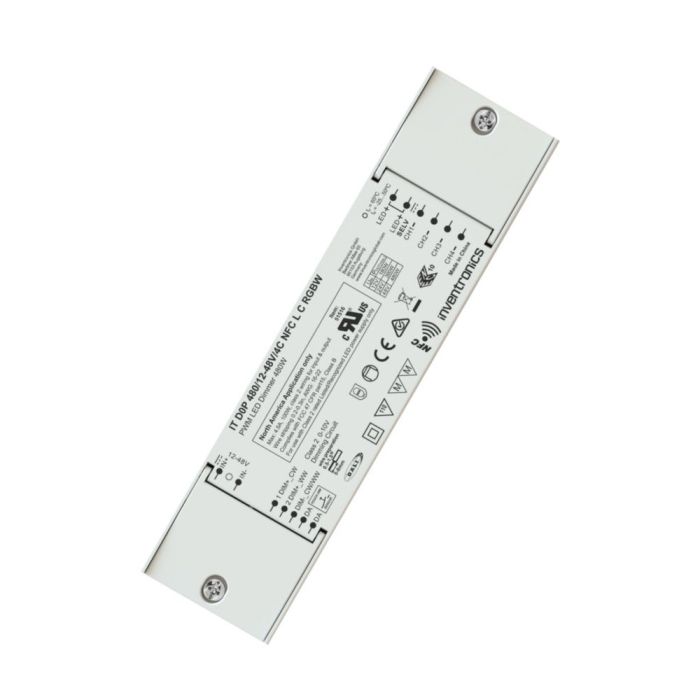

IT D0P 480/12-48V/4C NFC L C RGBW
Constant Voltage LED dimmer suitable to use with single colours, TW, RGB and RGBW options in both DT6 & DT8.
Touch Dim + 0/1-10V + Resistor + PWM dimming functions also built in.

Product benefits:
Specifically designed flex LED tapes and signage modules
High power handling on 4 channels
Multi-dim protocols: DALI-2, 0/1-10V, Resistor, PWM
1 to 4 channel output with DALI-2 certification
DALI-2 certified incl. Parts 251, 252, 253
DT6 and DT8 operations
TW in 0-10V compatible
NFC box programmability

Product features:
12-48 V SELV output constant voltage range
Output power up to 480 W
10A handling allowed on one channel
Overload/Over temperature/Short circuit protection, automatic, reversible
50.000h at tc max*
Screw terminals and integrated cable clamps
Suitable for Class I & II luminaires
Wide ta range -25 … +50°C
NFC programmability
Touch DIM compatibility
5 years guarantee*
*10% cumulated failure

Application:
Hospitality – decorative lighting, night light, dynamic lighting
Restaurants – decorative lighting
Shops – decorative lighting, shelf lighting
Residential – cove lighting, cabinet lighting

EAN: 6937186134127

Electrical data:
Nominal supply voltage 12: – 48 VDC
Supply voltage range: 11 – 54 VDC
Supply input current (12 – 24V, max): 15 A
Supply input current (48V, max): 10 A
Output load range (max per channel): between 120-480W**
Power loss in no-load condition ≤1.2 W (Secondary switching is not allowed)
Standby power ≤1.1 W
Protection class II
Suitable for fixtures with prot. Class I & II
Min load per channel: 1 A (Min load that doesn’t trigger open circuit detection)
Voltage ripple: 900 mVp-p
Capacitive load: 1 μF/A
Dimming data:
Dimming interface: DALI-2  (with DALI part 251-252-253)
Dimming range: 0,1-100 % (16-bit DALI dimming steps (0 … 254), log curve)
Dimming method: PWM
PWM frequency: 2 kHz Pst  ((LM) < 1, SVM < 0.4 for dim levels down to 5%)
Sensor function: Yes (in combination with inventronics Touch DIM sensor and normal PIR corridor sensors; sensor should be powered by other mains)
TW control with double push-button: Allowed (refer to product printing and user instructions)
TW control with 0-10V: Allowed (refer to product printing and user instructions)
Galvanic insulation: DA/Input, DA/Output (reinforced insulation)

Environmental data:
Ambient temperature range -25…+50 °C
Max. temperature at tc test point 65 °C At tc point of the product label, ta not exceeded
Mac case temperature in fault condition 110 °C
Storage temperature range -25…+85 °C
Permitted rel. humidity during operation 5 – 85 % Not condensing
Surge capability (INPUT) 500 V acc to. EN 61547
Surge capability (DALI) 1/2 kV acc to. EN 61547
Surge capability (0-10V) 500 V acc to. EN 61547
IP protection class IP 20 For indoor applications
Mains switching cycles >150000 cycles @ ta = 25°C
Expected ECG lifetime 50000 h tc max,10% failure rate
Expected ECG lifetime 100000 h tc max – 10°C,10% failure rate
Overheating protection Yes Auto reversible
Overload protection Yes Auto reversible
Short-circuit protection Yes Auto reversible
No load proof Yes Secondary switching is not allowed
DALI interface polarity No DALI cables can be connected without observing polarity
Type of connection screw terminals
Dimensions 195x51x20 mm L x W x H
Holes interaxis 162 mm
Weight 129 g
Casing material Plastic White RAL9010, 80% recycled material
