Large PennBrite Female Stackable Ball Corner Without Legs with 5mm Radius
Part No
C1364Z
€2.58
€2.15
In stock
Large PennBrite Zinc Female Stackable Ball Corner Without Legs
Without legs makes cases stronger - especially on FLight Panels. Rivet goes through Extrusion and Panel
Mates with C1363Z Large PennBrite Zinc Ball Corner
6 Mounting Holes that fits on 30mm Extrusions
Internal Radius: 5mm
Without legs makes cases stronger - especially on FLight Panels. Rivet goes through Extrusion and Panel
Mates with C1363Z Large PennBrite Zinc Ball Corner
6 Mounting Holes that fits on 30mm Extrusions
Internal Radius: 5mm

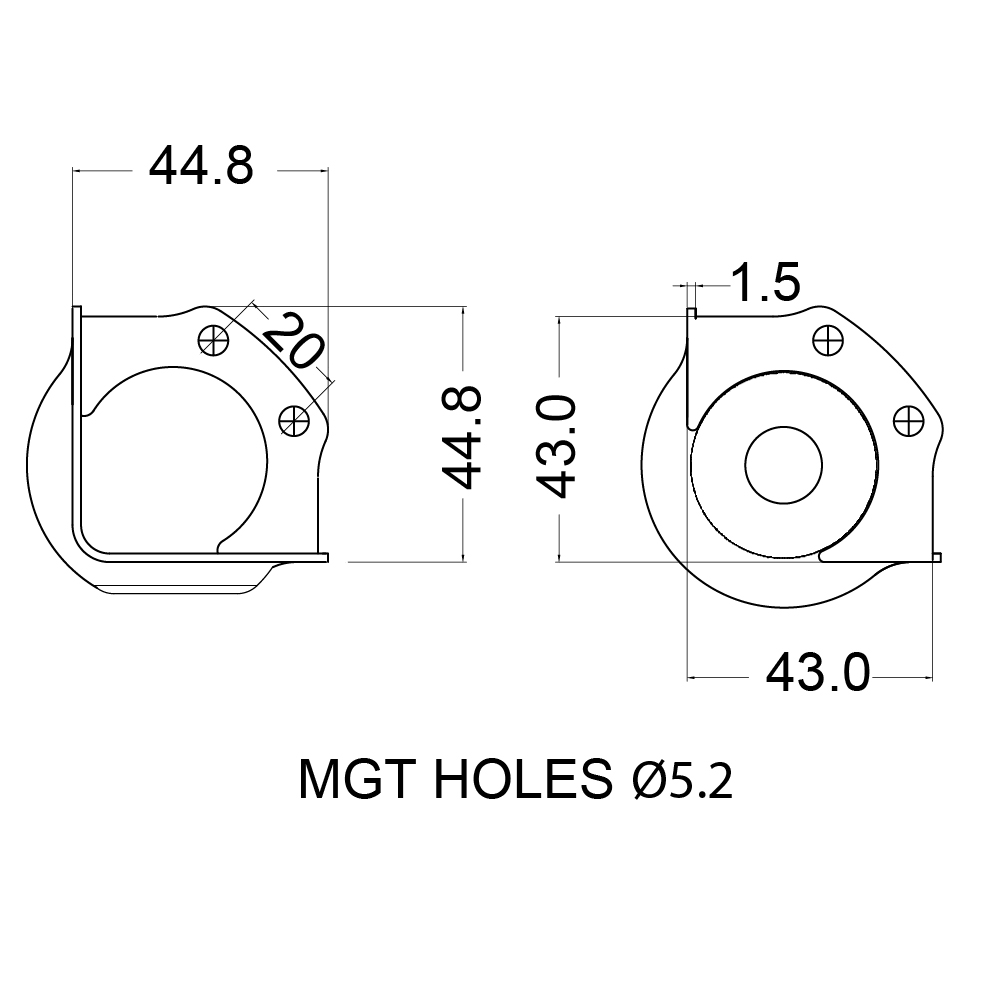

| 3D Model | View 3D Drawing |
|---|---|
| Mounting Holes | 6 |
| Number of Legs | 3 |
| Internal Radius | 5mm |
| Material | 1.5mm Steel |
| Stackable | Female |
| Weight | 80g |
| Finish | Zinc |
