Led Driver OT FIT 8/220-240/180 CS I MINI 4052899587946

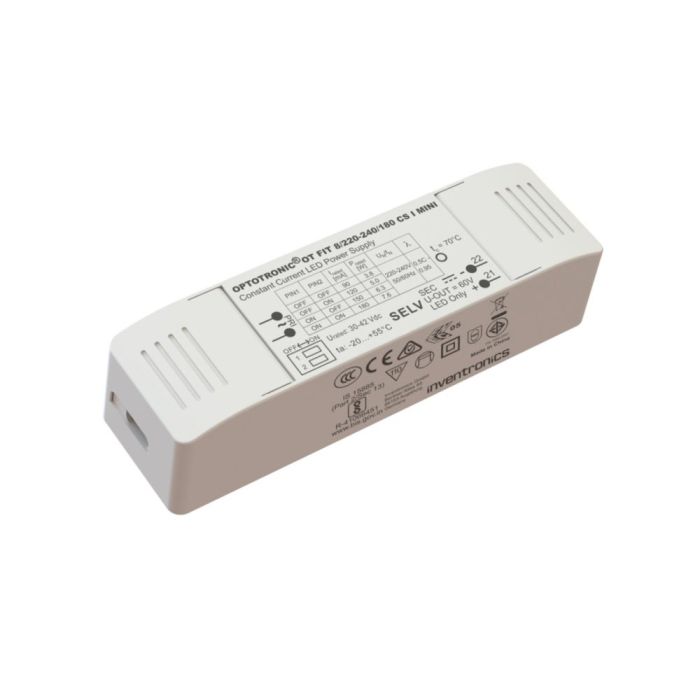

OT FIT 8/220-240/180 CS I MINI

Constant Current SELV drivers with very low output currents.
Key characteristics include cable clamps for independent installations and DIP switsches for 4 output currents per wattage.

EAN: 4052899587946

Perfect match for the Osram PrevaLED Coins 600 (35mm): LEDCOB60092736D and LEDCOB60093036D

Product family features:
Supply voltage: 220-240 V
Line frequency: 50Hz / 60Hz
Line voltage: 198-264 V

Product family benefits:
Small housing for flexible luminaire designs
Higher quality of light thanks to < 3% output ripple current
Operating temperature: up to 60 °C
User flexibility with four different output currents from one driver
Flexible current selection via DIP switch
Reversible overtemperature, overload, short-circuit and open-circuit protection
High efficiency (up to 90%)

Areas of application:
Extra small design for downlights, spotlights and other indoor luminaries
Suitable for luminaires of protection classes I and II
Suitable for indoor SELV installations

Electrical Data:
Nominal voltage: 220-240 V
Mains frequency: 50-60 Hz
Input voltage AC: 198-264 V
Nominal input current at 230V: 0.040 A
Total harmonic distortion: < 1 5%
Power factor λ: 0.50C - 0.95
Efficiency in full-load: 8 6%
Device power loss: 1.2 W
Inrush current: < 16 A
Max. ECG no. on circuit breaker 10 A (B): 36
Max. ECG no. on circuit breaker 16 A (B): 60
Surge capability (L-N): 1 kV
Surge capability (L/N-Ground): 2 kV
Protective conductor current: <0.7 mA
Nominal output voltage: 30-42 V
U-OUT (working voltage): 60 V
Nominal output current: 90/120/150/180 mA
Default output current: 180 mA
Output current tolerance: ±7.5 %
Output ripple current (100 Hz): < 3 %
Output PSTLM: ≤1
Output SVM: ≤0.4
Nominal output power: 2.7-7.6 W
Maximum output power: 7.6 W
Galvanic isolation primary/secondary: SELV

Dimensions & weight:
Product weight: 50 g
Length: 104 mm
Width: 30 mm
Height: 26.0 mm
Cable cross-section, input side: 0.5…1.5 mm² / 0.75…1.5 mm²
Cable cross-section, output side: 0.5…1.5 mm² / 0.75…1.5 mm²
Wire preparation length, input side: 7-8 mm
Wire preparation length, output side: 7-8 mm
Mounting hole spacing, length: 89.4 mm
Mounting hole spacing, width: 22.0 mm

Colors & materials:
Casing material: Plastic
Product color: White

Temperatures & operating conditions:
Ambient temperature range: -20 +55 C
Temperature range at storage: -20 +80 C
Maximum temperature at tc test point: max. +70 C
Max.housing temperature in case of fault: 110 C
Permitted rel. humidity during operation: 5-85 %

Lifespan:
ECG lifetime (at Tcase = 70 C at Tc point/10-% failure rate): 50000 h

Capabilities:
Dimmable: No
Max. cable length to lamp/LED module: 2 m
Suitable for fixtures with prot. class: I / II
Type of connection, input side: Push terminal
Type of connection, output side: Push terminal
Suitable for through-wiring: No
Overheating protection: Automatic reversible
Overload protection: Automatic reversible
Short-circuit protection: Automatic reversible
No-load proof: Yes
Intended for no-load operation: No
Number of channels: 1

Programming:
Programming interface: Dipswitch

Certificates & standards:
Approval marks – approval: ENEC 05 / CCC / CE / RCM
Standards: IEC 61347-1 / IEC 61347-2-13 / IEC 62384 / IEC 61000-3-2 / IEC 61000-3-3 / IEC 61547
Type of protection: IP20

Logistical data:
Commodity code: 85044083900
