1m 62x13mm Wide Plaster-in profile for straight runs

Wide plaster-in aluminium extrusion for recessing light strip into a plasterboard wall or ceiling.
Suitable for LED strips not wider than 20mm. For straight runs of light!
Can accommodate single colour, Tunable White, RGB, RGBW, RGBTW (aka RGBCC) IP20 and IP66/67 LED strips.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Fix/screw aluminium profile into your plasterboard, plaster the edges, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 10W COB FossLED FREE CUT strips in 2400K Extra Warm White LEDFLCOBFC10W24K, 2700K Warm White LEDFLCOBFC10W27K or 3000K Warm White (slightly cooler) LEDFLCOBFC10W3K. Need something punchier, then try the 15W COB Free CUT FossLED strip in 2700K Warm White LEDFLCOBFC15W27K.
Need a more cost effective solution? Try the Osram 8.6W Basic Flex in 2700K Warm White LEDBF1000SG3827 or 3000K Warm White (slightly cooler) LEDBF1000SG3830

Included in the 1M KIT:
LEDAL47A1M - 1M anodized aluminium extrusion
LEDAL47MC1M - 1M milky white cover
LEDAL47EC - 1x End Cap without hole
LEDAL47ECH - 1x End Cap with hole for cable entry

Other plaster-in profile available:
LEDAL47M2 - 2M anodized version (grey)
LEDAL47M3 - 3M anodized version (grey)

Features:
Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 20mm

Advantages:
Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:
Plasterboard in kitchens;
Plasterboard in rooms;
Plasterboard in corridors;
Plasterboard in meeting rooms.

Specifications:
Height: 13 mm
Length: 1000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Top with wings): 61.5 mm
Width (Base): 29.00 mm
Width (Internal): 20.7 mm
Cover material: Polycarbonate
Cover assembly method: Push in

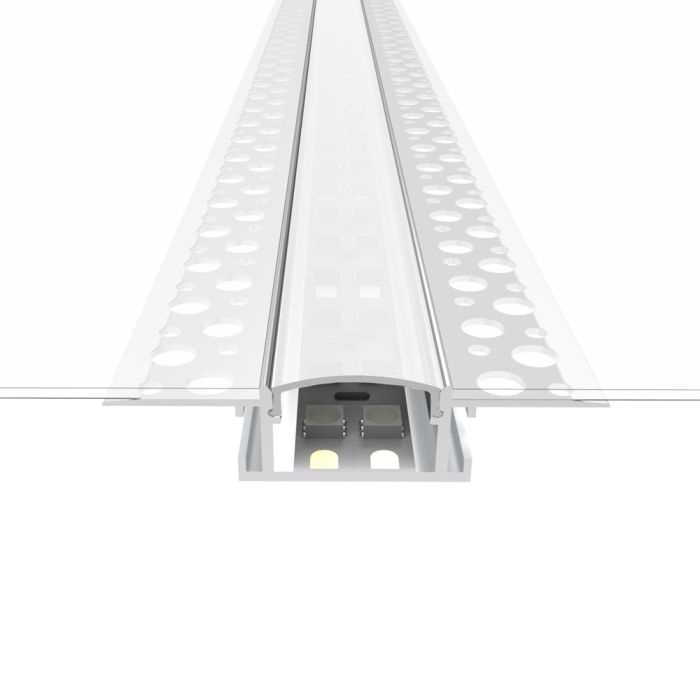

LED shown in images for illustration purposes and is not included in profile
