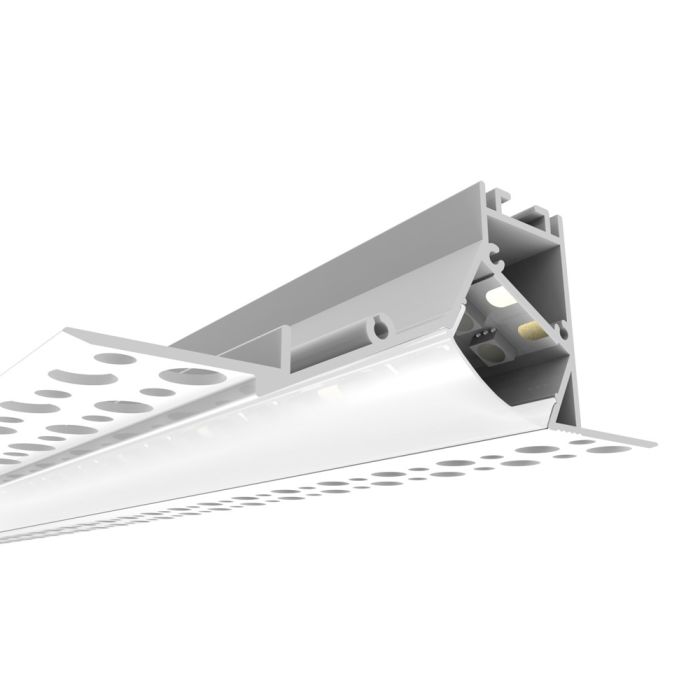

2m 95x35mm White Plaster-in profile for Wall Washing and Wall Grazing

Plaster-in aluminium extrusion for recessing light strip into a plasterboard ceiling.
Can be used for both wall washing and wall grazing effects. See images for more information.
Illuminate your walls to help make your space look brighter.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Fix/screw aluminium profile into your plasterboard, plaster the edges, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

We recommend high brightness LED tapes such as the Osram TecFlex 2000S in 2700K Warm white LEDTF2000SG1827, 3000K Warm White (slightly cooler) LEDTF2000SG1830 or in 4000K Cool White (aka Natural or Neutral White) LEDTF2000SG1840.
Do note there are many variables to consider when choosing the correct LED strip- height of the wall, other lighting in the room etc. Feel free to get in touch with us on [email protected] so that we can guide you to pick the correct LED tape for your installation.

Included in the 2M KIT:
LEDAL47A2M - 2M WHITE aluminium extrusion
LEDAL47MC2M - 2M milky white cover
LEDAL47EC - 1x End Cap without hole
LEDAL47ECH - 1x End Cap with hole for cable entry

Other plaster-in profile available:
LEDAL47 - 1M WHITE version
LEDAL47M3 - 3M WHITE version

Features:
Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 19mm

Advantages:
Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:
Plasterboard in entrance halls;
Plasterboard in receptions;
Plasterboard in meeting rooms;
Plasterboard in living rooms;
Plasterboard in galleries.

Specifications:
Height: 35 mm
Length: 2000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Top with wings): 94.5 mm
Width (Base): 19 mm
Width (Internal): 19.5 mm
Cover material: Polycarbonate
Cover assembly method: Push in

LED shown in images for illustration purposes and is not included in profile
